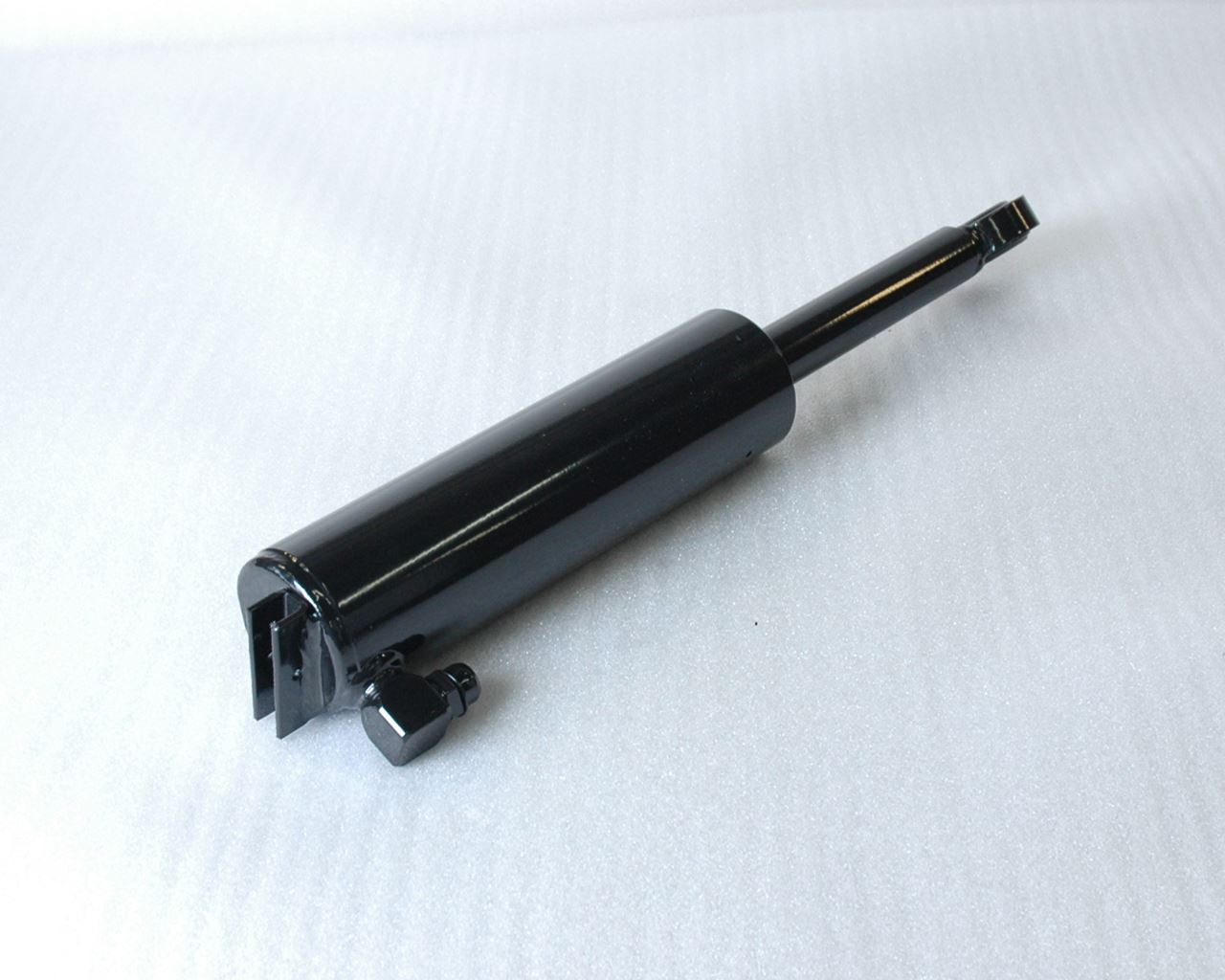

Hydraulic cylinder HC70/35-120

Hydraulic cylinder HC100/50-240

Description
Casing = 100mm, piston = 50mm, stroke = 240mm.
Single acting.

Weight
17,96 kg kg / pcs

Measurements
150x150x580 mm mm

Hydraulic cylinder HC100/50-320

Description
Casing = 100mm, piston = 50mm, stroke = 320mm.
Single acting.

Weight
20,44 kg kg / pcs

Measurements
155x155x660 mm mm

Hydraulic cylinder HC100/50-450

Description
Casing = 100mm, piston = 50mm, stroke = 450mm.
Single acting.

Weight
24,00 kg kg / pcs

Measurements
780x145x110 mm mm

Hydraulic cylinder HC100/50-450

Description
Casing = 100mm, piston = 50mm, stroke = 450mm.
Single acting.

Weight
24,00 kg kg / pcs

Measurements
N/A mm

Hydraulic cylinder HC100/50-600

Description
Casing = 100mm, piston = 50mm, stroke = 600mm.
Single acting.

Weight
28,00 kg kg / pcs

Measurements
940x460x160 mm mm

Hydraulic cylinder HC100/50-600

Description
Casing = 100mm, piston = 50mm, stroke = 600mm.
Single acting.

Weight
28,00 kg kg / pcs

Measurements
925x145x110 mm mm

Hydraulic cylinder HC40-175

Description
Casing = 52mm, piston = 40mm, stroke = 175mm.
Single acting.

Weight
3,88 kg kg / pcs

Measurements
70x70x285 mm mm

Hydraulic cylinder HC55/30-135

Description
Casing = 55mm, piston = 30mm, stroke = 135mm.
Single acting.

Weight
4,62 kg kg / pcs

Measurements
360x75x75 mm mm

Hydraulic cylinder HC55/30-150

Description
Casing = 55mm, piston = 30mm, stroke = 150mm.
Single acting.

Weight
4,37 kg kg / pcs

Measurements
330x80x80 mm mm

Hydraulic cylinder HC55/30-200

Description
Casing = 55mm, piston = 30mm, stroke = 200mm.
Single acting.

Weight
5,07 kg kg / pcs

Measurements
400x75x75 mm mm

Hydraulic cylinder HC55/30-905

Description
Casing = 55mm, piston = 30mm, stroke = 905mm.
Single acting.

Weight
14,00 kg kg / pcs

Measurements
1040x115x115 mm mm

Hydraulic cylinder HC70/35-157

Description
Casing = 70mm, piston = 35mm, stroke = 157mm.
Single acting.

Weight
6,20 kg kg / pcs

Measurements
320x80 mm mm

Hydraulic cylinder HC70/35-210

Description
Casing = 70mm, piston = 35mm, stroke = 210mm.
Single acting.

Weight
7,63 kg kg / pcs

Measurements
120x120x450 mm mm

Hydraulic cylinder HC70/35-450

Description
Casing = 70mm, piston = 35mm, stroke = 450mm.
Single acting.

Weight
11,71 kg kg / pcs

Measurements
800x115x80 mm mm

Hydraulic cylinder HC70/40-150

Description
Casing = 70mm, piston = 40mm, stroke = 150mm.
Single acting.

Weight
8,90 kg kg / pcs

Measurements
450x80x80 mm mm

Hydraulic cylinder HC70/50-970

Description
Casing = 70mm, piston = 50mm, stroke = 970mm.
Single acting.

Weight
29,00 kg kg / pcs

Measurements
1210x125x125 mm mm

Hydraulic cylinder HC80/40-175

Description
Casing = 80mm, piston = 40mm, stroke = 175mm.
Single acting.

Weight
8,26 kg kg / pcs

Measurements
130x130x365 mm mm

Hydraulic cylinder HC90/50-120

Description
Casing = 90mm, piston = 50mm, stroke = 120mm.
Single acting.

Weight
14,92 kg kg / pcs

Measurements
N/A mm

Hydraulic cylinder HC90/50-210

Description
Casing = 90mm, piston = 50mm, stroke = 210mm.
Single acting.

Weight
1,19 kg kg / pcs

Measurements
450x145x145 mm mm

Hydraulic cylinder HCD55/30-230

Description
Casing = 55mm, piston = 30mm, stroke = 230mm.
Double acting.
From 2016.

Weight
5,90 kg kg / pcs

Measurements
500x105x105 mm mm

Hydraulic cylinder HCD55/30-230

Description
Casing = 55mm, piston = 30mm, stroke = 230mm.
Double acting.
Until 2015.

Weight
6,40 kg kg / pcs

Measurements
500x105x105 mm mm

Hydraulic cylinder HCD70/35-100

Description
Casing = 70mm, piston = 35mm, stroke = 100mm.
Double acting.

Weight
6,16 kg kg / pcs

Measurements
N/A mm

Hydraulic cylinder HCD70/35-210

Description
Casing = 70mm, piston = 35mm, stroke = 210mm.
Double acting.

Weight
7,80 kg kg / pcs

Measurements
455x120x120 mm mm
